H-225-U-TRIG

>S-Clamps Clamp - H-225-U-TRIG
Horizontal hold down action toggle clamp


The S-Clamps Clamp - H-225-U-TRIG is a Horizontal hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of H225UTRIG

Material grade
Steel / zinc-plated
Base type
Flanged base
Spindle position
Gliding spindle position
Holding Capacity (kg)
225 Kg
Holding Capacity (N)
2250 N
Handle movement
70 degrees
Bar movement
90 degrees

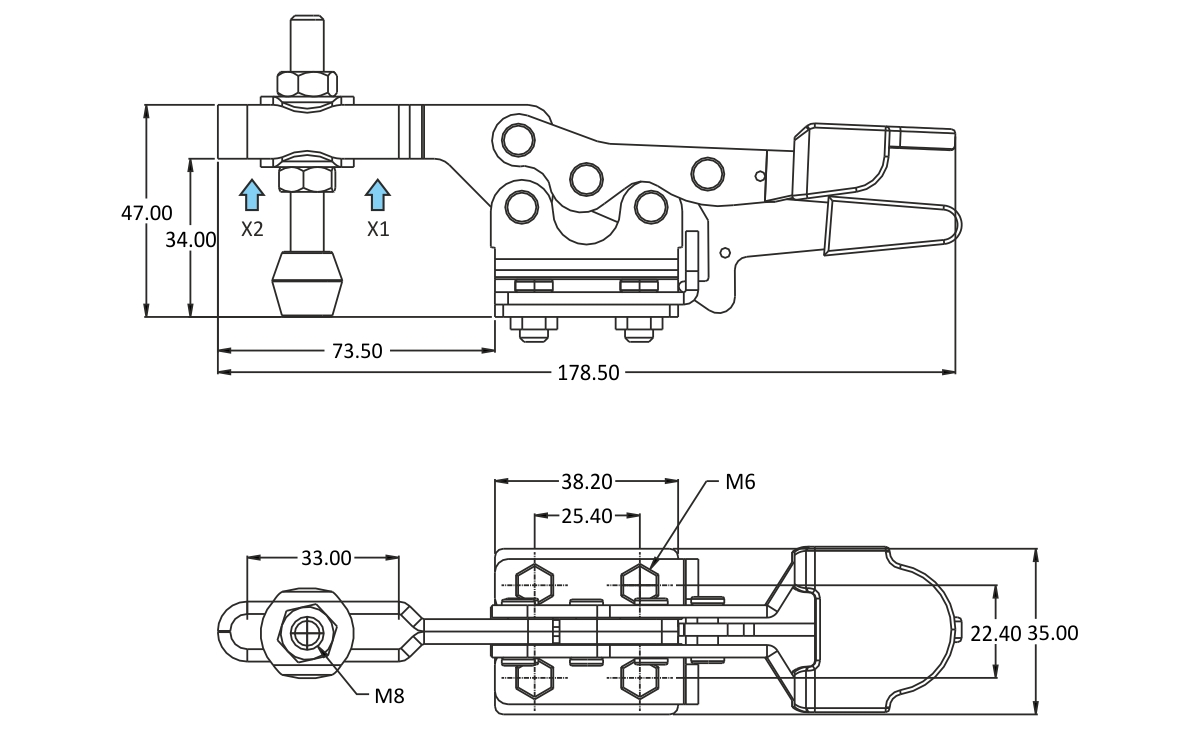

Dimensions

A
47

B
178

C
34

D
25.4

E
22.4

F
38.1

G
35.1

J
6.8

K
33

L
M8 Bolt






Anemo Engineering is offering S-Clamps Horizontal hold down action toggle clamp H-225-U-TRIG as Factory New.
