HTC-630-LH

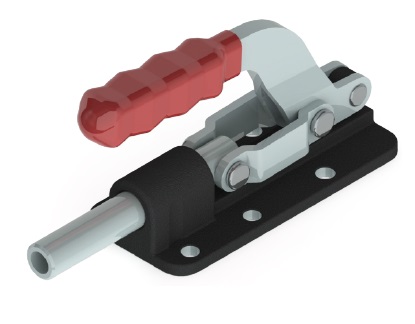

>S-Clamps Clamp - HTC-630-LH
Straight line - flanged

The S-Clamps Clamp - HTC-630-LH is a Straight line action clamps.

Request Free sample Request 3D Drawing

Properties of HTC630LH

Material grade

Steel / zinc-plated

Base type

Flanged base

Holding Capacity

7800 N

Dimensions

A

80

B

179

C

20.5

D

35

D1

41.4

E

41.4

F

128.5

G

58

H

51

J

8.5

Plunger thread

M10x1,50

M

15.7

Anemo Engineering is offering S-Clamps Straight line action clamps HTC-630-LH as Factory New.
