NFT-25-A-R

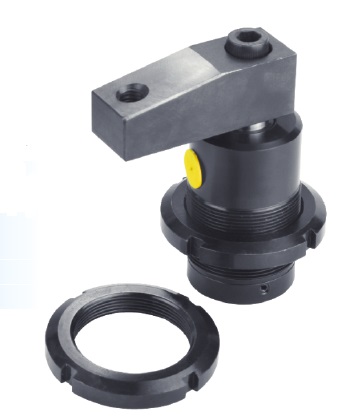

>S-Clamps hydraulic swing clamp - NFT-25-A-R
NFT series threaded body - right turning model


This S-Clamps clamp NFT-25-A-R is a hydraulic swing clamp of NFT series threaded body - right turning model

Request Free sample Request 3D Drawing

Properties of NFT25AR

Material Grade
Medium carbon steel body
Operating pressure
50-350 bar
Acting Type
Single acting
Swivel Angle
90 degrees
Piston diameter
18 mm
Bore diameter
25 mm
Swing stroke
12 mm
Clamping stroke
11 mm
Force
495 Kg
Force (N)
4950 N



Dimensions

A
108

B
102

C
18

D
19

E
48

G
45

H
10

J
M12

L
1/8 PT

M
10

P
65

S
M45x1,5




Anemo Engineering is offering S-Clamps hydraulic swing clamp NFT-25-A-R as factory new.
