H-217-UB-AB

S-Clamps Clamp - H-217-UB-AB
Horizontal hold down action toggle clamp

s-clamps logo
H-217-UB-AB Product image

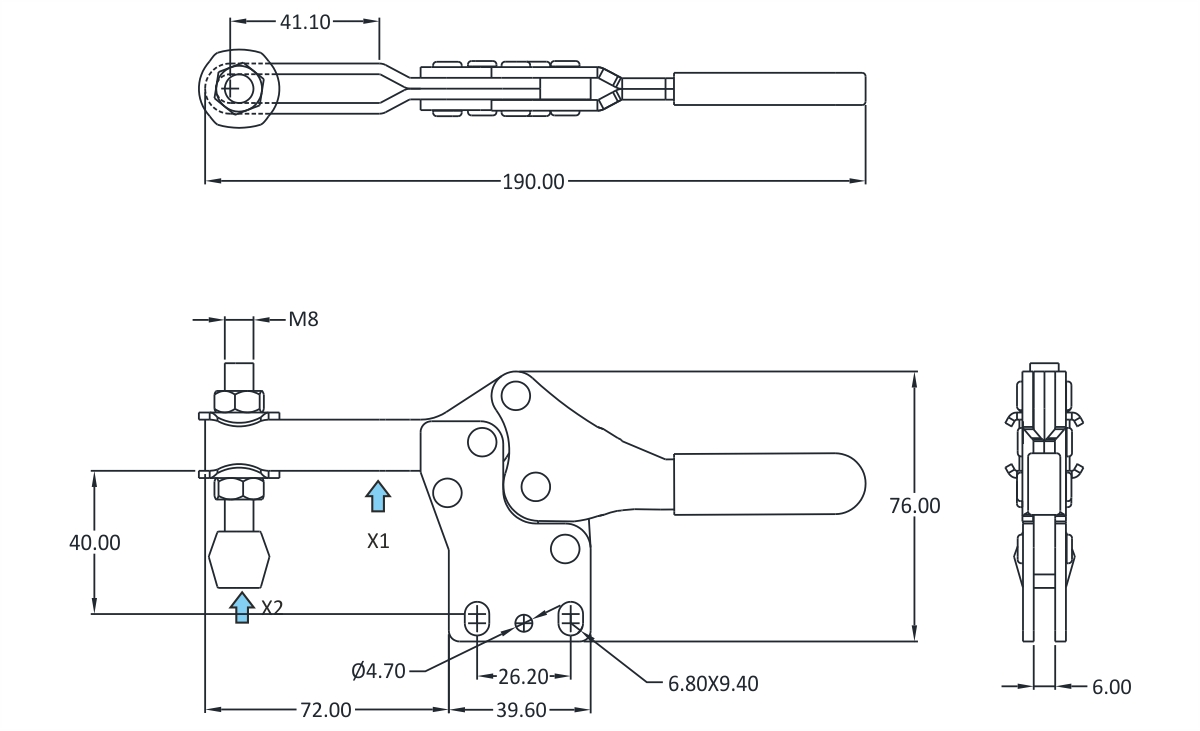

H-217-UB-AB Product technical image


The S-Clamps Clamp - H-217-UB-AB is a Horizontal hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of H217UBAB

Material grade
Steel / zinc-plated
Base type
Straight base
Spindle position
Gliding spindle position
Holding Capacity (kg)
100 kg
Holding Capacity (N)
1000 N
Handle movement
60 degrees
Bar movement
90 degrees



Dimensions

A
63.5

B
166

C
34

D

E
6


F


J
5.5 x 8.5

K
42

N
M6 Bolt





Anemo Engineering is offering S-Clamps Horizontal hold down action toggle clamp H-217-UB-AB as Factory New.
