VTC-202-TULB

>S-Clamps Clamp VTC-202-TULB
Vertical hold down action toggle clamp

The S-Clamps Clamp VTC-202-TULB is a Vertical hold down action toggle clamp.

Request Free sample Request 3D Drawing

Properties of VTC202TULB

Material Grade

Steel / zinc-plated

Base type

Straight base

Spindle position

Gliding spindle position

Holding capacity

100 Kg

Holding capacity

1000 N

Handle movement

64 degrees

Bar movement

104 degrees

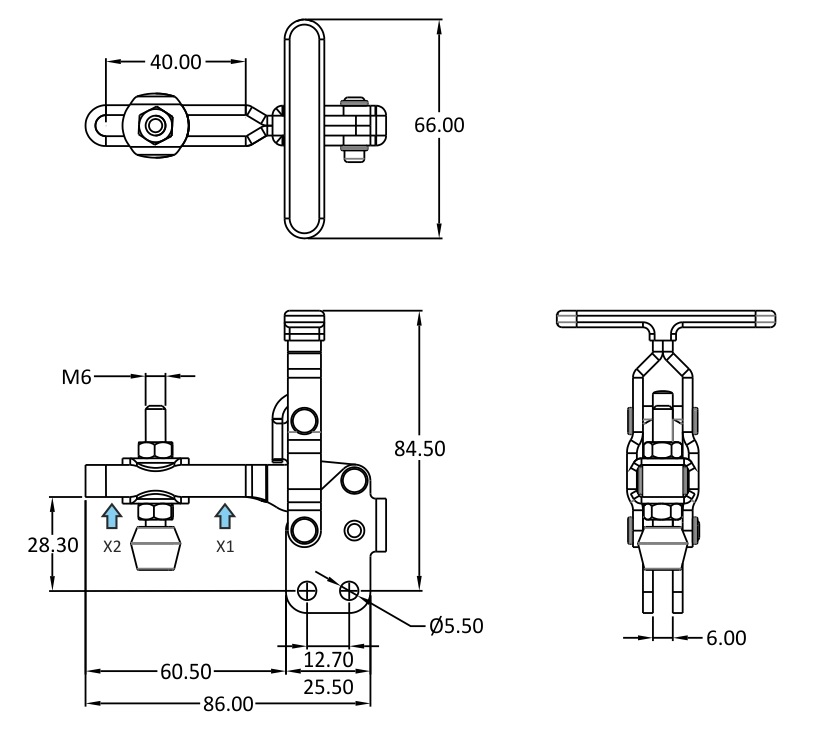

Dimensions

A

84.5

B

86

C

28.3

D

12.7

E

6

F

25.5

G

H

45.8

J

5.5

K

25.4

L

66

M

M6 Bolt

Anemo Engineering is offering S-Clamps Clamp VTC-202-TULB as Factory New.
